FLYING LEAD INSTALLATION SYSTEMS

Versatile and cost-efficient Flying Lead Installation Systems available for hire on short notice. The arrangements are based on the use of re-configured Ubas ROV baskets. Application and services are:

Other equipment that may be used in conjunction with flying lead installation is also available.

Right arrow

Basket size/capacity, configuration and compartment quantity & capacity are advised based on in-house spreadsheet calculation. Input needed is cable diameter, minimum bending radius (MBR) & length.

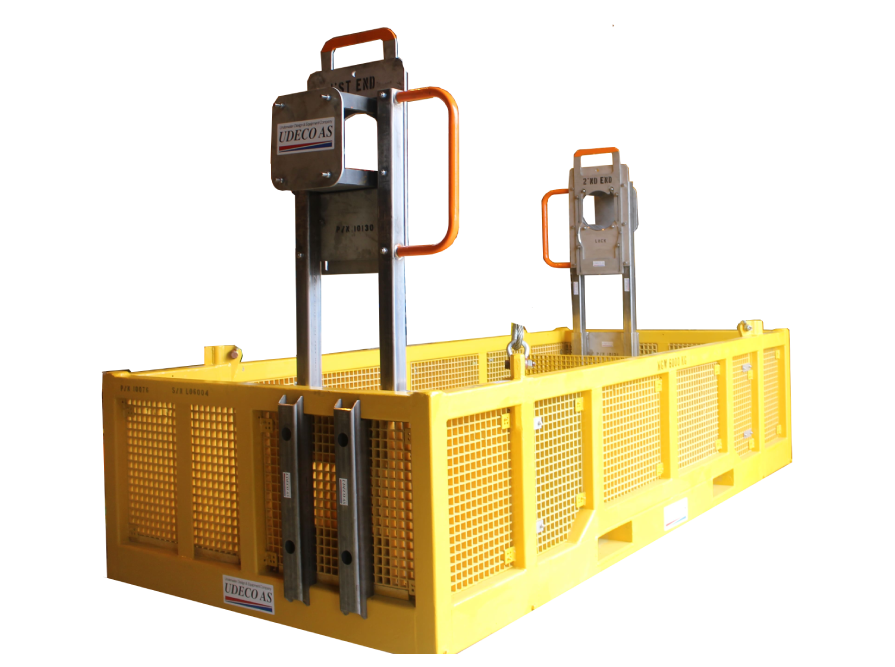

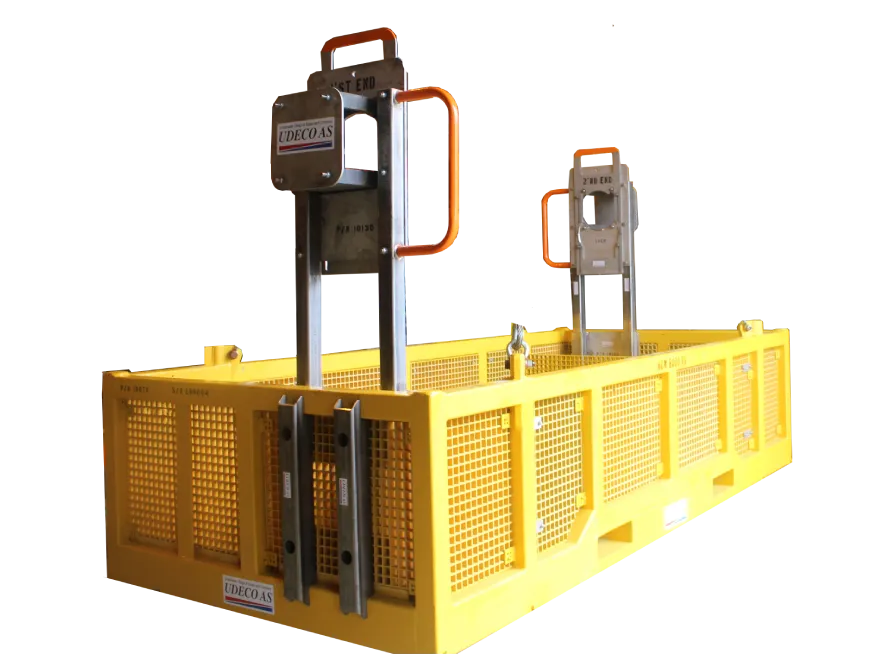

EFL/OFL Installation Systems

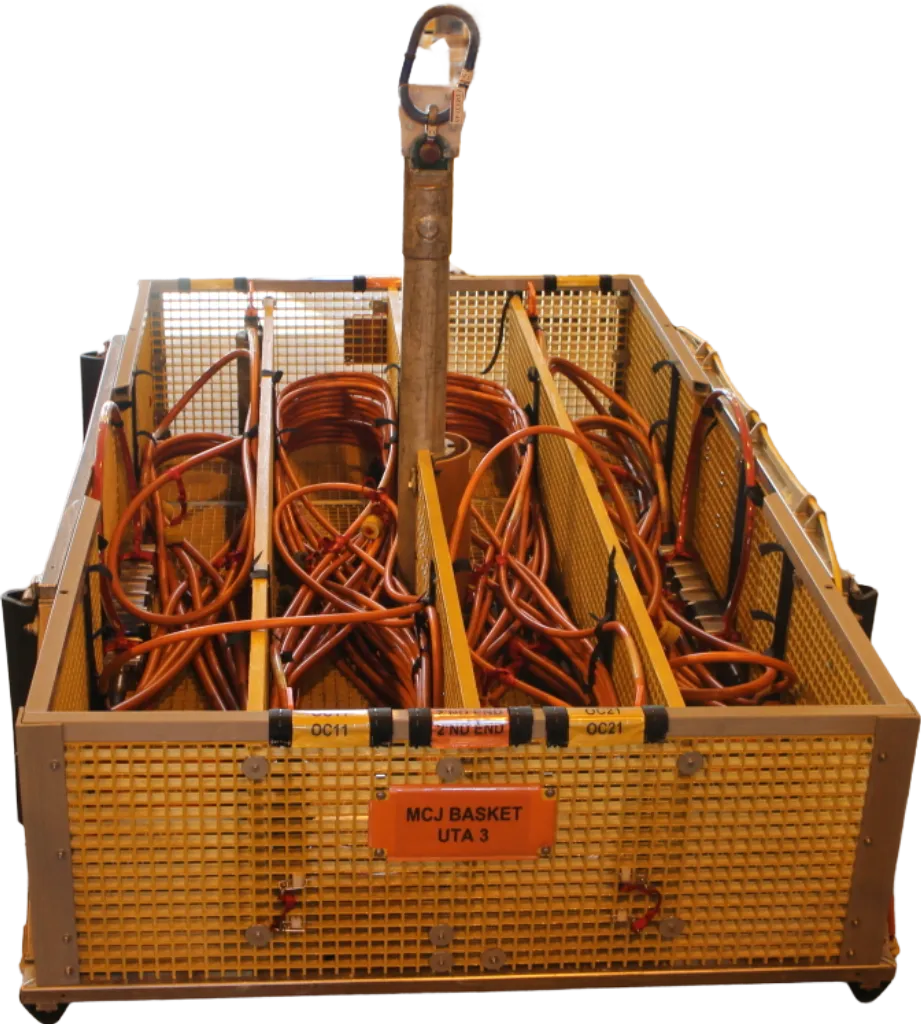

EFL / OFL Basket Option A
One to four EFL's/OFL’s

Ubas A or B ROV baskets configured for flying lead installation.

Rental

Ubas A or B ROV baskets reconfigured for Electrical and/or Optical Flying Lead installation.

View Details

Right arrow

Equipped with compartments, generic type connector parking receptacles, cable securing strap plates, marking plates and tags. The parking receptacle can be quickly mounted or repositioned. The strapping plates permit quick securement of the cables for deployment.

Up to 4 compartment available each with a capacity of an approx. 110m long EFL/OFL.

Longer EFL's/OFL’s are placed in two or more compartments.

Basket details are included on Ubas A Basket & Ubas B Basket datasheets.

See datasheet below for EFL / OFL Basket details.

Contact us about this product

Right arrow
Submitted
We will get back to you with information about this product shortly
Oops! Something went wrong while submitting the form.

EFL / OFL Basket Option B
One to four EFL/OFL’s

Ubas B ROV basket configured for electrical and optical flying lead installation.

Rental

Ubas B ROV basket reconfigured for Electrical and/or Optical Flying Lead installation.

View Details

Right arrow

Two of the basket sides are hinged down, secured with brackets and two side cages are mounted. Equipped with compartments, generic type connector parking receptacles, cable securing strap plates, marking plates and tags. The parking receptacle can be quickly mounted or repositioned. The strapping plates permit quick securement of the cables for deployment.

Up to 4 compartment available each with a capacity of an approx. 160m long EFL/OFL.

Longer EFL's/OFL’s are placed in two or more compartments.

Basket details are included on Ubas A Basket & Ubas B Basket datasheets.

See datasheet below for EFL / OFL Basket details..

Contact us about this product

Right arrow
Submitted
We will get back to you with information about this product shortly
Oops! Something went wrong while submitting the form.

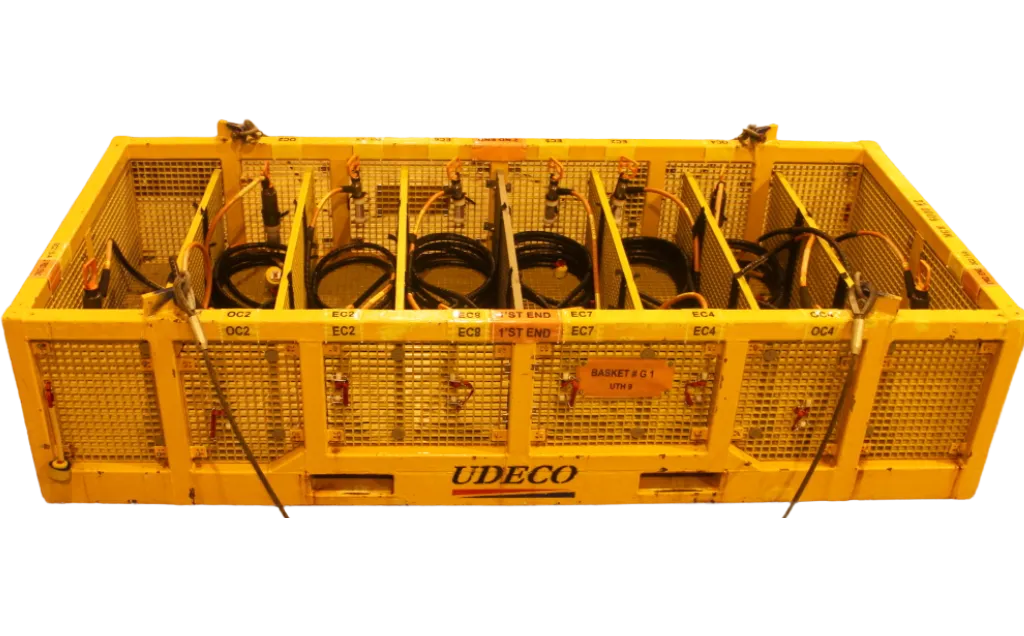

EFL / OFL Basket Option C
Five to nine EFL/OFL’s

Ubas G ROV basket configured for electrical and optical flying lead installation.

Rental

Ubas G ROV basket reconfigured for Electrical and/or Optical Flying Lead installation.

View Details

Right arrow

Equipped with compartments, generic type connector parking receptacles, cable securing strap plates, marking plates and tags. The parking receptacle can be quickly mounted or re-positioned. The strapping plates permit quick securement of the cables for deployment.

Up to 9 compartment available, each with a capacity or approx. 80m long EFL/OFL (longer if fewer compartments).

Longer EFL's/OFL’s are placed in a wider compartment, or in two or more compartments.

Basket details are included on Ubas G Basket datasheet.

See datasheet below for EFL / OFL Basket details.

Contact us about this product

Right arrow
Submitted
We will get back to you with information about this product shortly
Oops! Something went wrong while submitting the form.

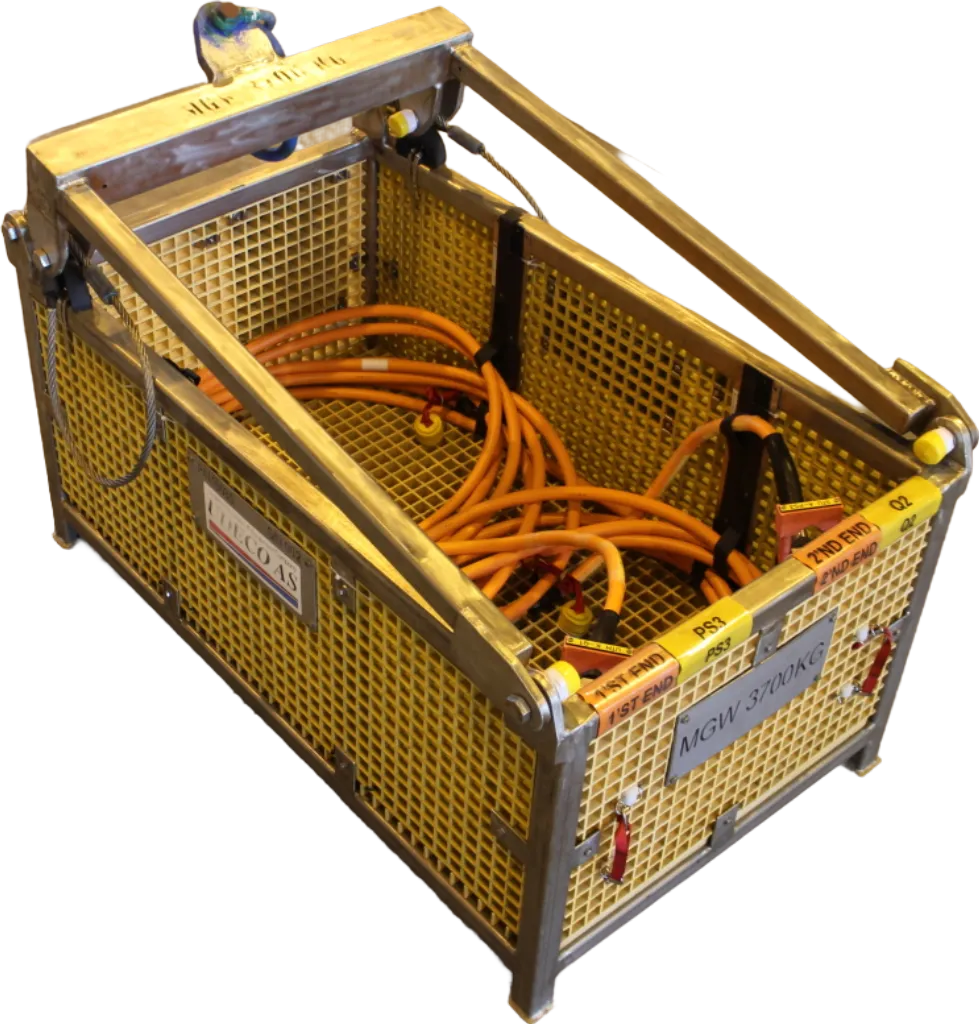

EFL / OFL Basket Option D
One or two EFL/OFL’s

Ubas D ROV basket configured for electrical and optical flying lead installation.

Rental

Ubas D ROV basket reconfigured for Electrical and/or Optical Flying Lead installation.

View Details

Right arrow

Equipped with generic type connector parking receptacles, cable securing strap plates, and marking tags. The parking receptacle can be quickly mounted or re-positioned. The strapping plates permit quick securement of the cables for deployment.

For installation of 1 or 2 EFL/OFL. Approx. maximum lengths are 85m (1 off) or 42m (2 off).

Basket details are included in the Ubas D datasheet.

See datasheet below for EFL / OFL Basket details.

Contact us about this product

Right arrow
Submitted
We will get back to you with information about this product shortly
Oops! Something went wrong while submitting the form.

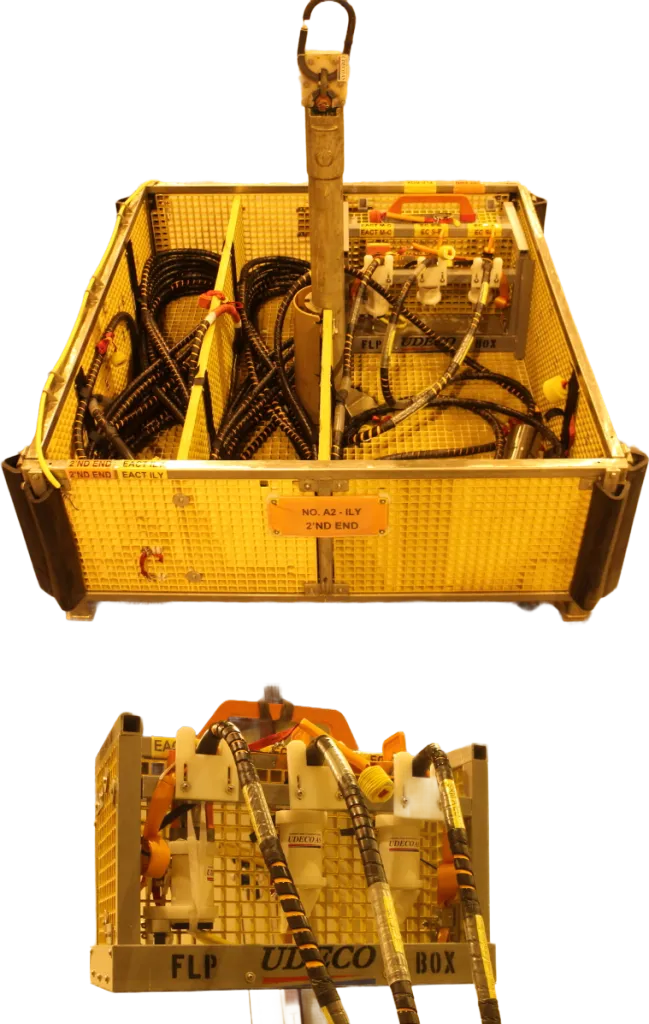

Multi Leg EFL’s and OFL’s Installation Basket

Ubas G ROV basket configured for hydraulic and electrical/optical flying lead installation.

Rental

Deployment and installation basket for multi leg Electrical and / or Optical Flying Leads.

View Details

Right arrow

Based on the use of reconfigured Ubas A, B or G ROV Baskets.

Two methods are available for deploying and installing EFL’s and OFL’s with three or more legs / tails / ends. Which method to use depends on the length each leg.

A basket that includes two or more compartments for arranging the legs is used in the cases where each leg is long enough for the ROV to connect each of them to the subsea structure while the other ends and connectors remains secured and parked in the basket parking receptacles.

In the cases where the legs are too short for each end to be pulled out and connected individually while the other ends and connectors are still located in the basket parking receptacles, one or two FLP Boxes are used.

Each FLP Box, Flying Lead Parking / Positioning Box, permit up to five legs / tails including connectors to be parked in it. The ROV retrieve the box from the basket and bring the box including flying lead legs over to the subsea location where one and one connector is then connected. It can be landed on hard or soft seabed, or on top of subsea structures.

The box can also be used as a local subsea parking structure for FL’s connectors during intervention or workover operations.

FLP Box weight in air 97kg, in seawater 50kg.

See Datasheet for further details on Multi Tail EFL& OFL.

Datasheet for the FLP Box is available on request.

Retrieval and pull-out of a FLP Box with two parked flying lead legs from a Ubas A Basket is shown in this Video link.

Contact us about this product

Right arrow
Submitted
We will get back to you with information about this product shortly
Oops! Something went wrong while submitting the form.

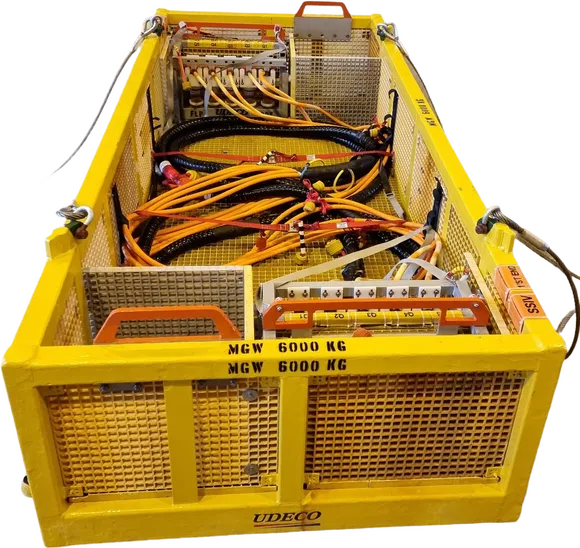

EFL / OFL Bundle Assembly Installation Basket

EFL-OFL bundle basket assembly

Rental

Deployment and installation basket for up to five Bundled Electrical and / or Optical Flying Leads.

View Details

Right arrow

Based on the use of reconfigured Ubas G, H or I ROV baskets. The basket arrangement includes two Flying Lead Parking / Positioning Boxes, FLP Boxes. Basket type depend on bundle length and diameter. Using the Ubas H basket, the bundle length may be several hundred meter long.

The EFL/OFL bundle arrangement is similar to an HFL which contains several hydraulic lines / hoses.

An EFL / OFL bundle contains two, three, four or five EFL’s and/or OFL’s that are bundled together with one or two layers of spiral guard. Each flying lead cable may also be provided with spiral guard.  A stainless steel tension relief wire may also be included. A PEHD clamp assembly is included in each end of the bundle. The outer spiral guard(s) is located between these two clamp assemblies.

A Dynema fibre tension relief line is included in the bundle. Using this line in combination with a reinforcement sleeve and the outer spiral guard, pull-loop arrangement is included in each end of the bundle spiral guard.

Each FLP box includes up to five electrical and/or optical connector parking receptacles. A ROV releasable length adjustable holdback arrangement between the FLP Box and the bundle pull-loops ensures that pull-out loads are transferred into the bundle assembly including tension relief line during the ROV pull-out from the basket, and not into individual FL cables or parked connectors. During pull-out the FL tails between the pull-out loop the FLP box will be hanging in a catenary shape.

The bundle arrangement requires only one first end and one second end pull-out and connection operation. Furthermore, there will be only one bundle line that may require final ROV seabed positioning, permanently or temporarily stabilisation (e.g., Ubag T-Types), and if applicable, rock dumping.

FLP Box weight in air 105kg, in seawater 55kg.

ROV releasable Ustrap tie-down straps is provided for securement of the of the bundled section of the assembly. Individual EFL tails and the holdback arrangement is secured in strapping plates.

See Datasheets for details.

The pull-out test performed on a 165m long four line EFL & OFL Bundle is included in the Video Link.

Contact us about this product

Right arrow
Submitted
We will get back to you with information about this product shortly
Oops! Something went wrong while submitting the form.

HFL Installation Systems

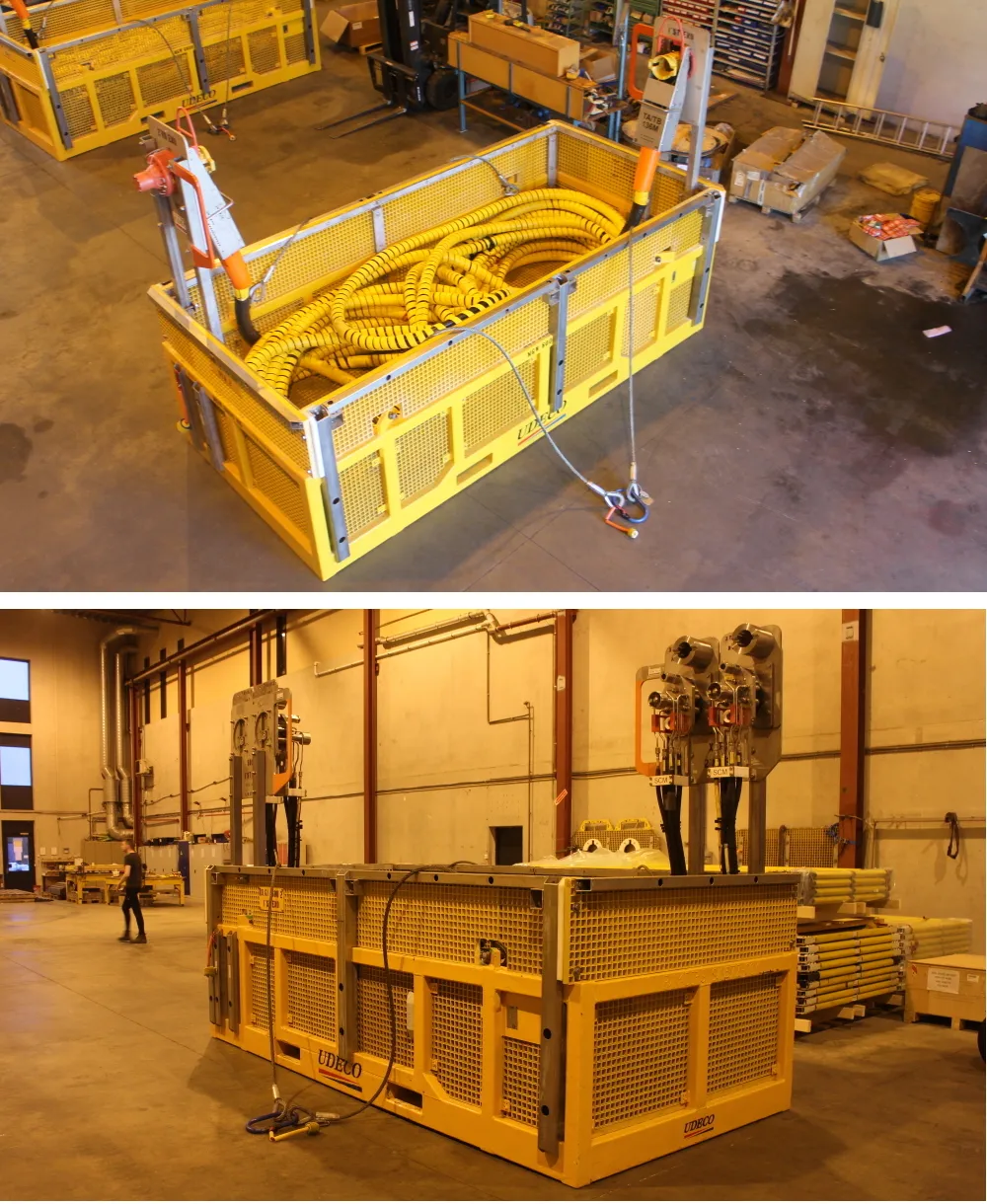

HFL Basket Option A - One or two HFL’s (1 x 115m or 2 x 55m)

Hydraulic flying lead basket with one or two HFL's

Rental

Ubas G ROV basket reconfigured for Hydraulic Flying Lead and Jumper installation.

View Details

Right arrow

Equipped with two Single or two Dual Cobra Head / MQC parking stands permitting one or two HFL’s to be deployed and installed in one single subsea deployment operation. The stands include the cobra head / MQC parking receptacles, either supplier specific or generic. The stands also include an ROV grabber, cobra head / MQC lock-unlock function, and position indication. ROV releasable Ustrap tie-down straps is provided for securement of the HFL.

Single HFL:
Basket is equipped with two bolt-on single MQC / Cobra Head parking stands. Max length for a 12cm dia. HFL is 115m.

Two HFL’s: Basket is equipped with two bolt-on dual MQC / Cobra Head parking stands. Max lengths for two 12cm dia. HFL are 2 x 55m.

A minimum bending radius of up to 0.9m is accommodated.

Parking stands can be quickly laid down / erected for transport purposes.

Basket details are included on the
Ubas G Basket datasheet.

Panel and stand information is included on the Panel and Stand datasheet.

See datasheet below for HFL Basket details.

Contact us about this product

Right arrow
Submitted
We will get back to you with information about this product shortly
Oops! Something went wrong while submitting the form.

HFL Basket Option B - One or two HFL’s (1 x 195m or 2 x 95m)

Ubas G ROV basket with side extension configured for hydraulic flying lead and jumper installation.

Rental

Ubas G ROV basket with basket side extension and configured for Hydraulic Flying Lead and Jumper installation.

View Details

Right arrow

Equipped with two Single or two Dual Cobra Head / MQC parking stands permitting one or two HFL’s to be deployed and installed in one single subsea deployment operation. The stands includee the cobra head / MQC parking receptacles, either supplier specific or generic. The stands also include an ROV grabber, cobra head / MQC lock-unlock function, and position indication. ROV releasable Ustrap tie-down straps is provided for securement of the HFL.

Single HFL:
Basket is equipped with two bolt-on single MQC / Cobra Head parking stands. Max length for a 12cm dia. HFL is 195m.

Two HFL’s: Basket is equipped with two bolt-on dual MQC / Cobra Head parking stands. Max lengths for two 12cm dia. HFL are 2 x 95m.

A minimum bending radius of up to 0.9m is accommodated.

Parking stands can be quickly laid down/ erected for transport purposes.

Basket details are included on the Ubas G Basket datasheet.

Panel and stand information is included on the Panel and Stand datasheet.

See datasheet below for HFL Basket details.

Contact us about this product

Right arrow
Submitted
We will get back to you with information about this product shortly
Oops! Something went wrong while submitting the form.

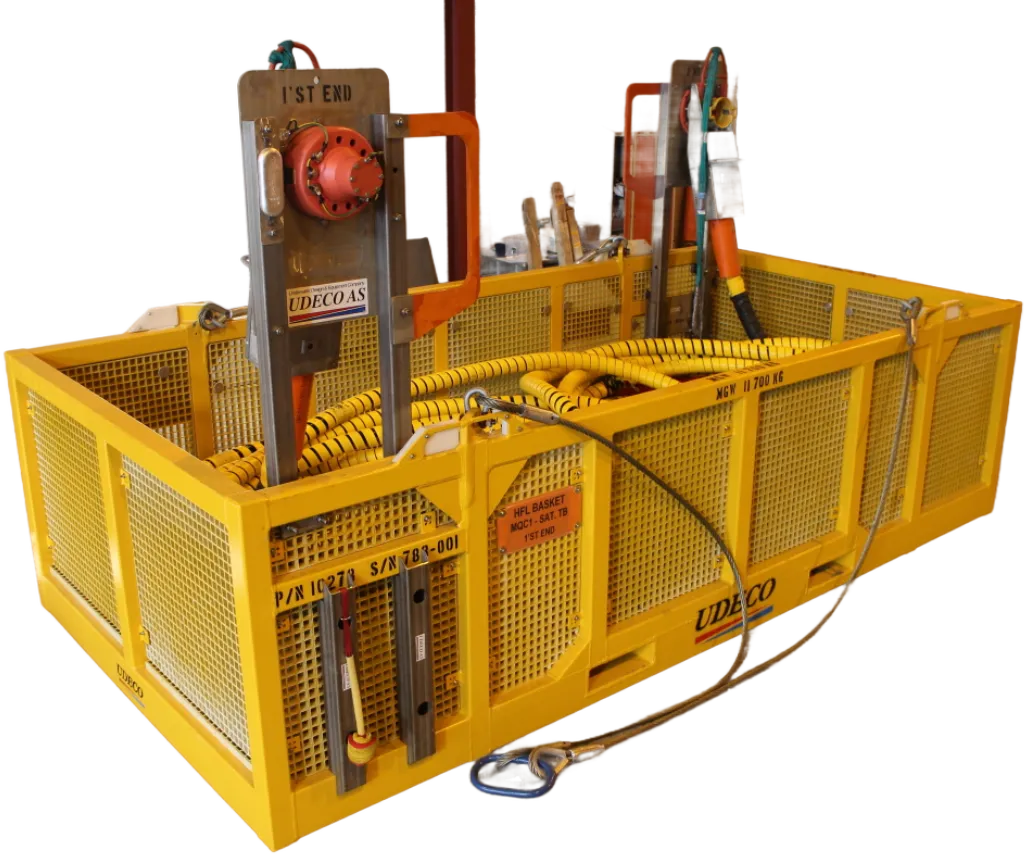

HFL Basket Option C - One or two HFL’s (1 x 190m or 2 x 90m)

Ubas I ROV basket configured for hydraulic flying lead and jumper installation.

Rental

Ubas I ROV basket reconfigured for Hydraulic Flying Lead and Jumper installation.

View Details

Right arrow

Equipped with two Single or two Dual Cobra Head / MQC parking stands permitting one or two HFL’s to be deployed and installed in one single subsea deployment operation. The stands include cobra head / MQC parking receptacles, either supplier specific or generic. The stands also include an ROV grabber, cobra head / MQC lock-unlock function, and position indication. ROV releasable Ustrap tie-down straps is provided for securement of the HFL.

Single HFL: Basket is equipped with two bolt-on single MQC / Cobra Head parking stands. Max length for a 12cm dia. HFL is 190m.

Two HFL’s: Basket is equipped with two bolt-on dual MQC / Cobra Head parking stands. Max lengths for two 12cm dia. HFL are 2 x 90m.

A minimum bending radius of up to 1.06m is accommodated.

Parking stands can be quickly laid down/ erected for transport purposes.

Basket details are included on the Ubas I Basket datasheet.

Panel and stand information is included on the Panel and Stand datasheet.

See datasheet bellow for HFL Basket details.

Contact us about this product

Right arrow
Submitted
We will get back to you with information about this product shortly
Oops! Something went wrong while submitting the form.

HFL Basket Option D - One to four HFL’s (1 x 260m ...4 x 60m)

Ubas H ROV basket configured for hydraulic flying lead and jumper installation.

Rental

Ubas H ROV basket reconfigured for Hydraulic Flying Lead and Jumper installation.

View Details

Right arrow

Equipped with two Single, or two Dual, or four Dual Cobra Head / MQC parking stands permitting one to four HFL’s to be deployed and installed in one single subsea deployment operation. The stands include cobra head / MQC parking receptacles, either supplier specific or generic. The stands also include an ROV grabber, cobra head / MQC lock-unlock function, and position indication. ROV releasable Ustrap tie-down straps is provided for securement of the HFL.

Single HFL: Basket is equipped with two bolt-on single MQC / Cobra Head parking stands. Max length for a 12cm dia. HFL is 260m.

Two HFL’s: Basket is equipped with two bolt-on dual MQC / Cobra Head parking stands. Max lengths for two 12cm dia. HFL are 2 x 130m.

Three or four HFL’s: Basket is equipped with four bolt-on dual MQC / Cobra Head parking stands. Max lengths for 12cm dia. HFL’s are 3 x 80m or 4 x 60m.

A minimum bending radius of up to 1.06m is accommodated.

Any stands can be quickly laid down / erected for transport purposes.

Basket details are included on the
Ubas H Basket datasheet.

Panel and stand information is included on the Panel and Stand datasheet.

See datasheet bellow for HFL Basket details.

Contact us about this product

Right arrow
Submitted
We will get back to you with information about this product shortly
Oops! Something went wrong while submitting the form.

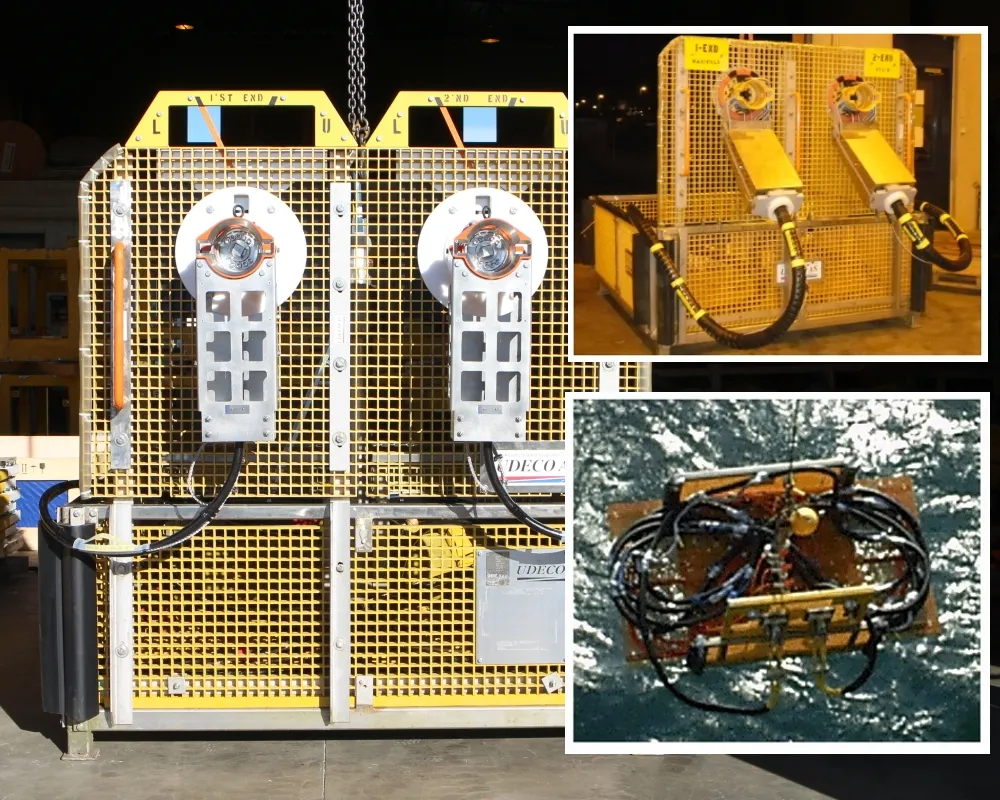

HFL Basket Option E - One HFL, 60+ m long

UBAS A or B ROV baskets configured for hydraulic flying lead installation

Rental

Ubas A or B ROV baskets reconfigured for Hydraulic Flying Lead installation.

View Details

Right arrow

Equipped with parking panel that includes cobra head / MQC parking receptacles, either supplier specific or generic. The panel also includes a ROV grabber, cobra head / MQC lock-unlock function, position indication and MQC marking.

The basket is provided with an Ubag counterweight located in the opposite side of the panel. ROV releasable Ustrap tie-down straps is provided for securement of the HFL.

Capacity is approx. 60m for a 12cm diameter HFL. It accommodates minimum bending radius of up to 1.0m.

Two of the sides in the Ubas B basket can be laid down to accommodate longer HFL’s (60m +).

Basket details are included on the Ubas A Basket & Ubas B Basket datasheets.

Panel and stand information are included on the Panel and Stand datasheet.

See datasheet bellow for HFL Basket details.

Contact us about this product

Right arrow
Submitted
We will get back to you with information about this product shortly
Oops! Something went wrong while submitting the form.

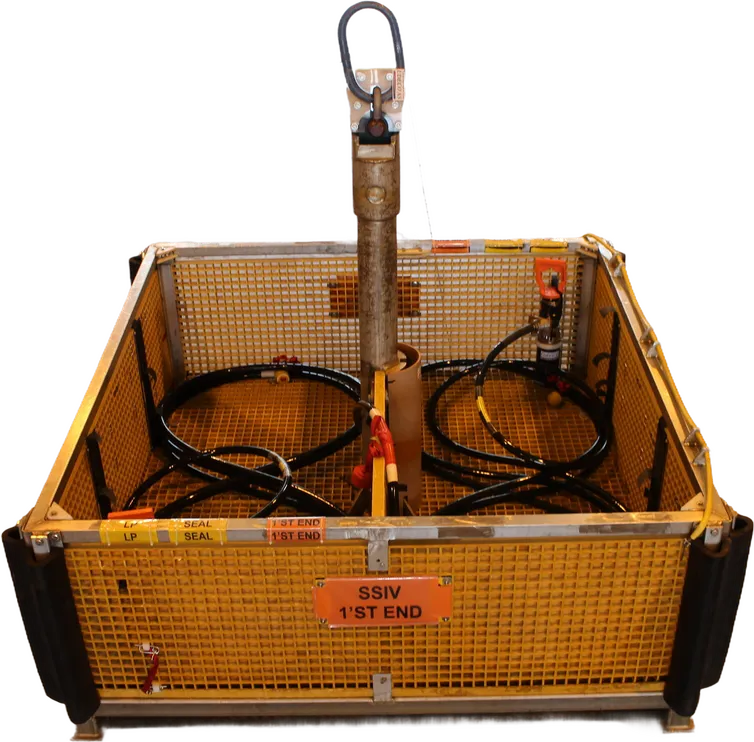

Other – HFL, EFL/OFL and Single Line Installation

Combined HFL & EFL/OFL Basket

Ubas G ROV basket configured for hydraulic and electrical/optical flying lead installation.

Rental

Ubas G, H, or I ROV baskets reconfigured for combined Hydraulic and Electrical / Optical Flying Lead installation.

View Details

Right arrow

These baskets can be arranged with one main HFL compartment and two EFL/ OFL compartments (Ubas H, up to four EFL / OFL compartments).

Equipped with Cobra Head / MQC parking stands. The stands include cobra head / MQC parking receptacles, either supplier specific or generic. The stands also include a ROV grabber, cobra head / MQC lock-unlock function, and position indication.

EFL/OFL compartments are provided with parking receptacles and strapping plates for securing the cable.

The basket and compartments are provided with required marking.

Type of basket and capacity will be advised for each specific case.

Contact us about this product

Right arrow
Submitted
We will get back to you with information about this product shortly
Oops! Something went wrong while submitting the form.

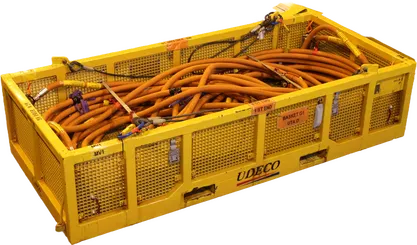

Large Diameter EFL / Power Cable Basket

Ubas G ROV basket configured for hydraulic and electrical/optical flying lead installation.

Rental

Ubas G, H, or I ROV basket configured for large diameter EFL / power cable installation, one or two.

View Details

Right arrow

A large diameter EFL / power cable (e.g., 95mm) is handled and packed in the basket similar to an HFL.

The basket is equipped with generic type connector parking receptacles, marking tags and ROV releasable tie-down strap for securement of the cable.

Type of basket and capacity will be advised for each specific case.

Contact us about this product

Right arrow
Submitted
We will get back to you with information about this product shortly
Oops! Something went wrong while submitting the form.

Mono HFL & Single Small Dia. Lines Basket

Ubas A ROV Basket configured for singe, small diameter line installation

Rental

Type of installation basket used for Mono / Single Hose HFL, and other small diameter lines varies. It may be an Ubas A, B or G ROV basket.

View Details

Right arrow

Beside length, selection of basket and basket configuration depend mainly on the type of connector included in each end of the mono HFL or single line. Dependent on mono HFL / single line particulars up to two lines can be deployed ion the basket.

Ubas G with parking stands is being used in the cases where the mono HFL / single line is provided with Cobra Heads / MQC type connection. This is also the case for connectors that shall be connected using a torque tool.

The stands include inboard parking receptacles, either supplier specific or generic. The stands also include a ROV grabber, cobra head / MQC / connector lock-unlock function, and position indication. Mono HFL / single line is secured with ROV releasable tie-down strap. Dependent on the diameter of the hose / line strapping plates may also be included and used.

In the case where the mono HFL / single line includes a stab type connector with ROV grabber interface a Ubas A or B ROV basket normally used. The basket is in this case equipped with compartments, generic type connector parking receptacles, cable securing strap plates, marking plates and tags. The parking receptacle can be quickly mounted or repositioned. The strapping plates permit quick securement of the cables for deployment.

Type of basket and capacity will be advised for each specific case.

Contact us about this product

Right arrow
Submitted
We will get back to you with information about this product shortly
Oops! Something went wrong while submitting the form.

Accessories

ROV Basket Lifting Rigging

Master link for basket lifting

Included

The ROV Basket lift rigging is included in the rental rate.

View Details

Right arrow

Ubas A, B & D ROV baskets includes an 8.5Mt shackle and a 17.1t Master link. Ubas A & B baskets also includes a Shackle and Link Positioner for easy connection and disconnection of ROV Hook. Some of the positioner material is transparent such that the lifting components can easily be inspected.

Ubas G, H & I Baskets includes two 2-parted wire ling assemblies. When these are disconnected, they are laid down on the seabed along the basket long sides. The master links included in the sling sets includes a Ufist Ball Fist (65mm dia.) to assist ROV disconnection / connection of the master.

Basket delivery documentation includes valid certificates and control reports.

Contact us about this product

Right arrow
Submitted
We will get back to you with information about this product shortly
Oops! Something went wrong while submitting the form.

Installation / Intervention / Workover Operation Panels

Rental

For installation, and in the case of an intervention or workover operation, Ubas A, B and G baskets can be provided with one or several parking panels or stands.

View Details

Right arrow

This will permit disconnected flying leads to be parked in the panels or stands (stands fits the Ubas G basket only).

The stands and panels include supplier specific or generic type electrical/optical parking receptacles and Cobra Head / MQC parking receptacles. The stands / panels also include a ROV grabber, cobra head / MQC lock-unlock function, and position indication. Any client supplied equipment / MQC plates will be mounted onto panels or stands using bolt-on interface plates.

In case of a longer subsea operation period the MQC parking receptacles needs to be supplier specific and include blind couplers. Also, in case of a longer subsea operation period, the basket will be provided with a bolt on cathodic protection system (with verified electrical continuity).

The baskets will be provided with Ubag counterweights to balance stands and panels as applicable for such an operation.

The FLP Box can also be used for temporary local parking of disconnected electrical / optical connectors.

See Datasheet for details.

Contact us about this product

Right arrow
Submitted
We will get back to you with information about this product shortly
Oops! Something went wrong while submitting the form.

Manual MQC make-up and torque tool

Manual MQC make-up tool.

Rental

Rental

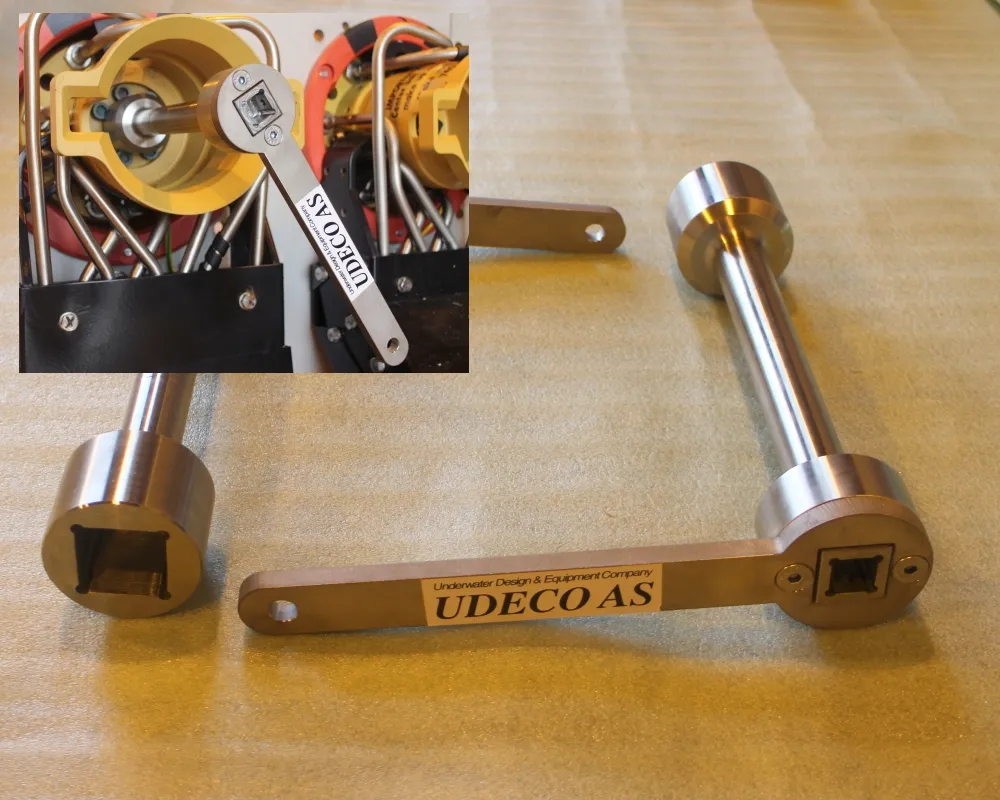

Manual MQC make-up tool with 1.5” square drive (Class 4).

View Details

Right arrow

It permits the MQC to be made up manually. It is also provided with a 3/4” square socket interface for final manual torque tool make-up of the MQC.

The tool is available together with ROV basket and MQC panels or stands. When hired it is delivered chained to the panel or stands.

Purchase

Contact us about this product

Right arrow
Submitted
We will get back to you with information about this product shortly
Oops! Something went wrong while submitting the form.

Ufist – Ball Fist for Flying Lead Installation

Manual MQC make-up tool.

The Ufist system includes various types of ROV lifting and handling devices. Among other this includes ball fist and ring fists for flying lead installation.

Purchase

View Details

Right arrow

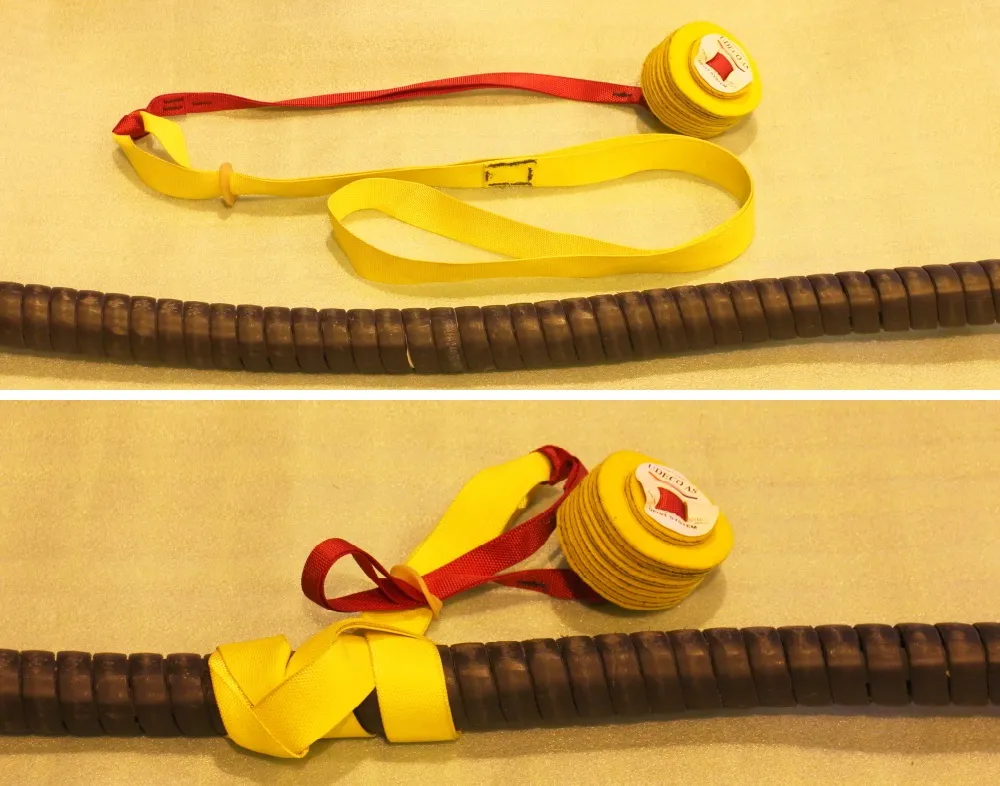

For HFL installation large ball fists (100mm dia.) with anti-slip strap are recommended.

For EFL / OFL installation small ball fists (65mm dia.) with are recommended.

The fists are fast to install and do not require extensive duct taping and / or tie wraps for the attachments.

Fist used for flying lead installation is delivered with a temporary shortening ring to reduce the risk for entanglement between fists, or fist and jumper / cable during pull out of the flying lead.

For increased fist buoyancy and for easy grabbing of the fists they can as an option be delivered with a bendable and buoyant 1” PE tube.

Ufist Products are only available together with other products, rental equipment or services provided by Udeco.

See datasheet for details on Ufist Ball and Ring Fist.

Contact us about this product

Right arrow
Submitted
We will get back to you with information about this product shortly
Oops! Something went wrong while submitting the form.

Combined Parking Receptacle and Protector

Manual MQC make-up tool.

As an option the rental EFL / OFL baskets can be provided with one or several combined connector Parking Receptacle & Retrievable Protector.

View Details

Right arrow

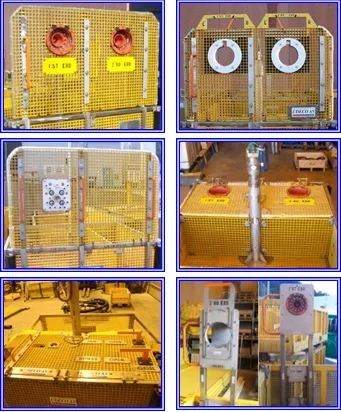

EFL/OFL rental baskets are provided with parking receptacles for the electrical and optical connectors. These are permanently attached to the baskets and secure  and protect the connector during basket transport, handling, deployment, and landing on the seabed.

In a case where a protector is needed on the connector during pull out of the EFL/OFL from the basket, and later for temporary placement on the seabed or on the subsea structure, a combined connector receptacle and protector is available. When the ROV retrieve the connector from the parking receptacle in the basket, part of the receptacle remains attached to the connector and act as a protector (mechanical + debris). The non-buoyant protector is removed by the ROV prior to connecting the connector. The protector does not include any metallic parts that may cause a possible galvanic reaction with the connector parts if the connector including protector is left temporarily unconnected on the seabed or subsea structure.

Purchase

Contact us about this product

Right arrow
Submitted
We will get back to you with information about this product shortly
Oops! Something went wrong while submitting the form.
